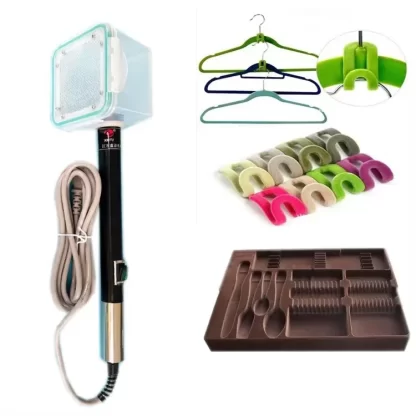

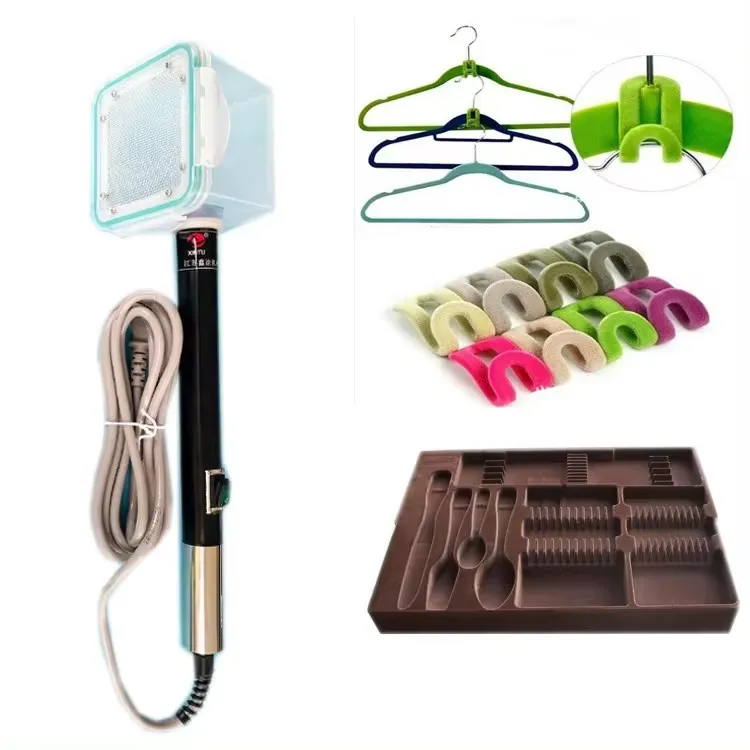

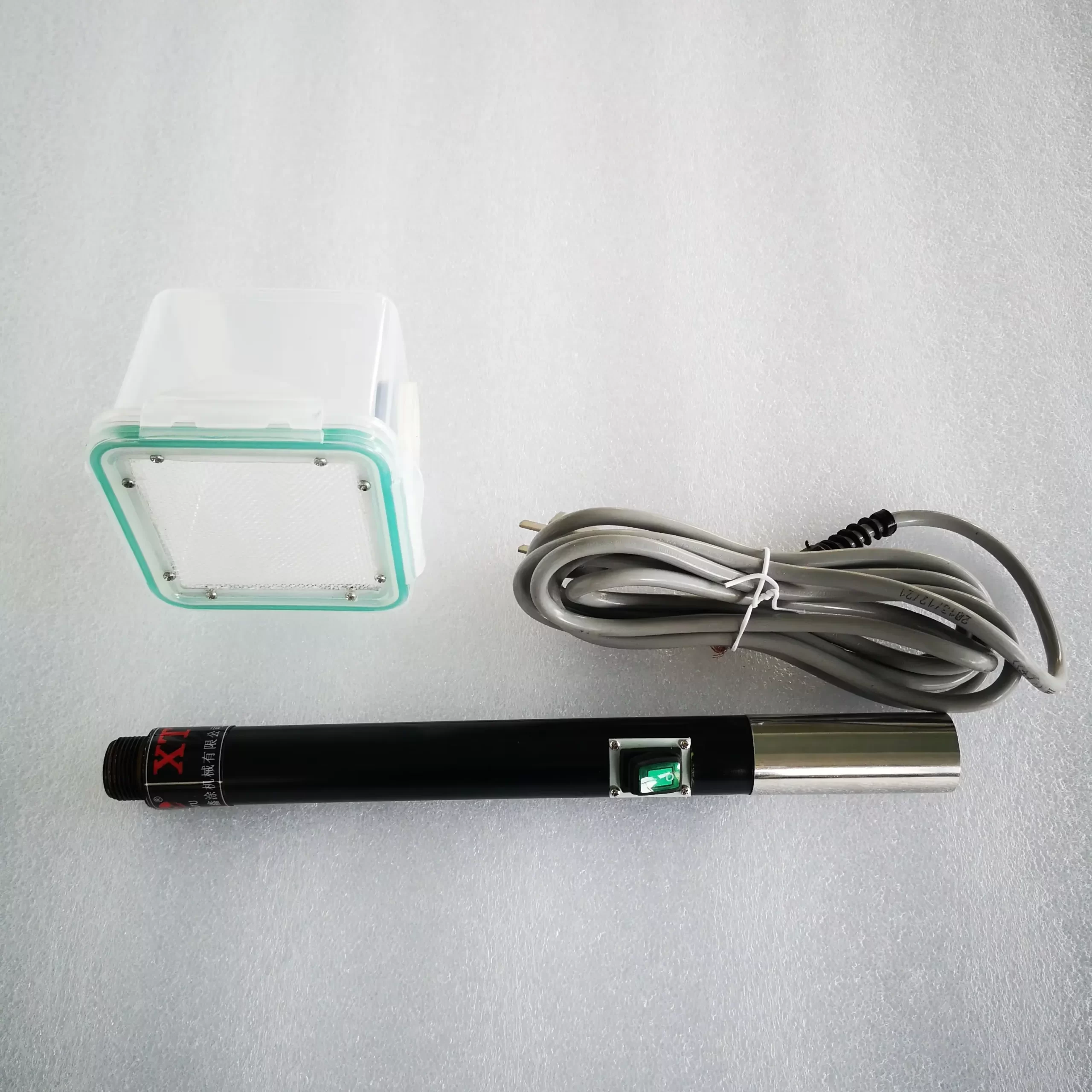

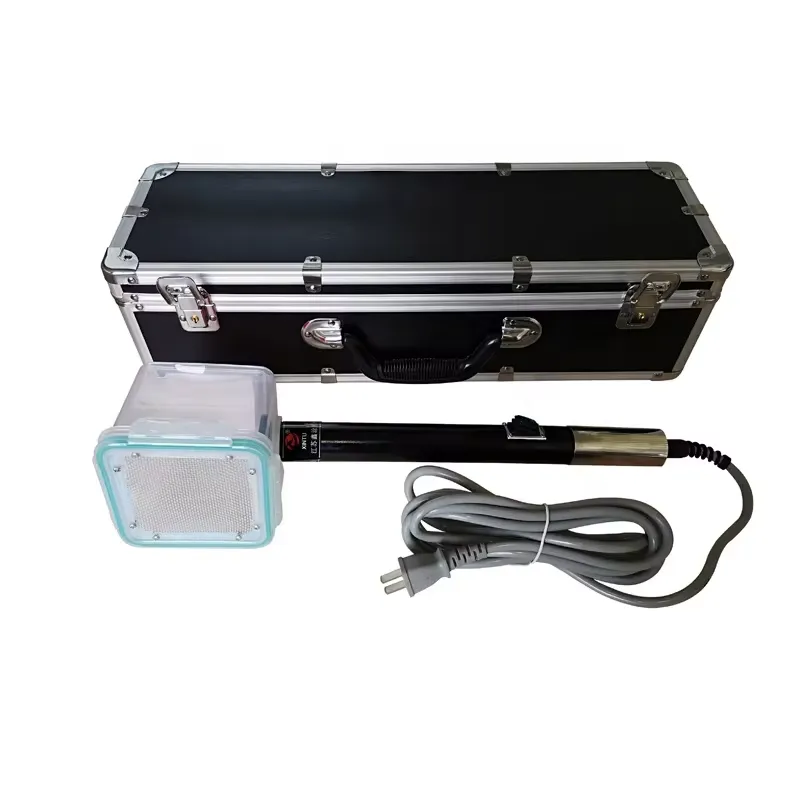

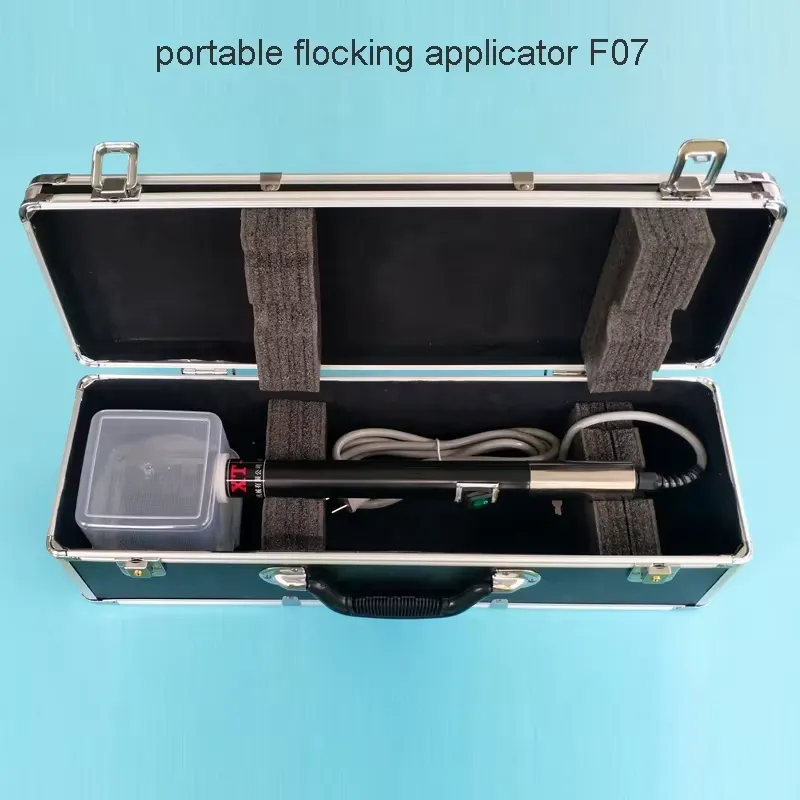

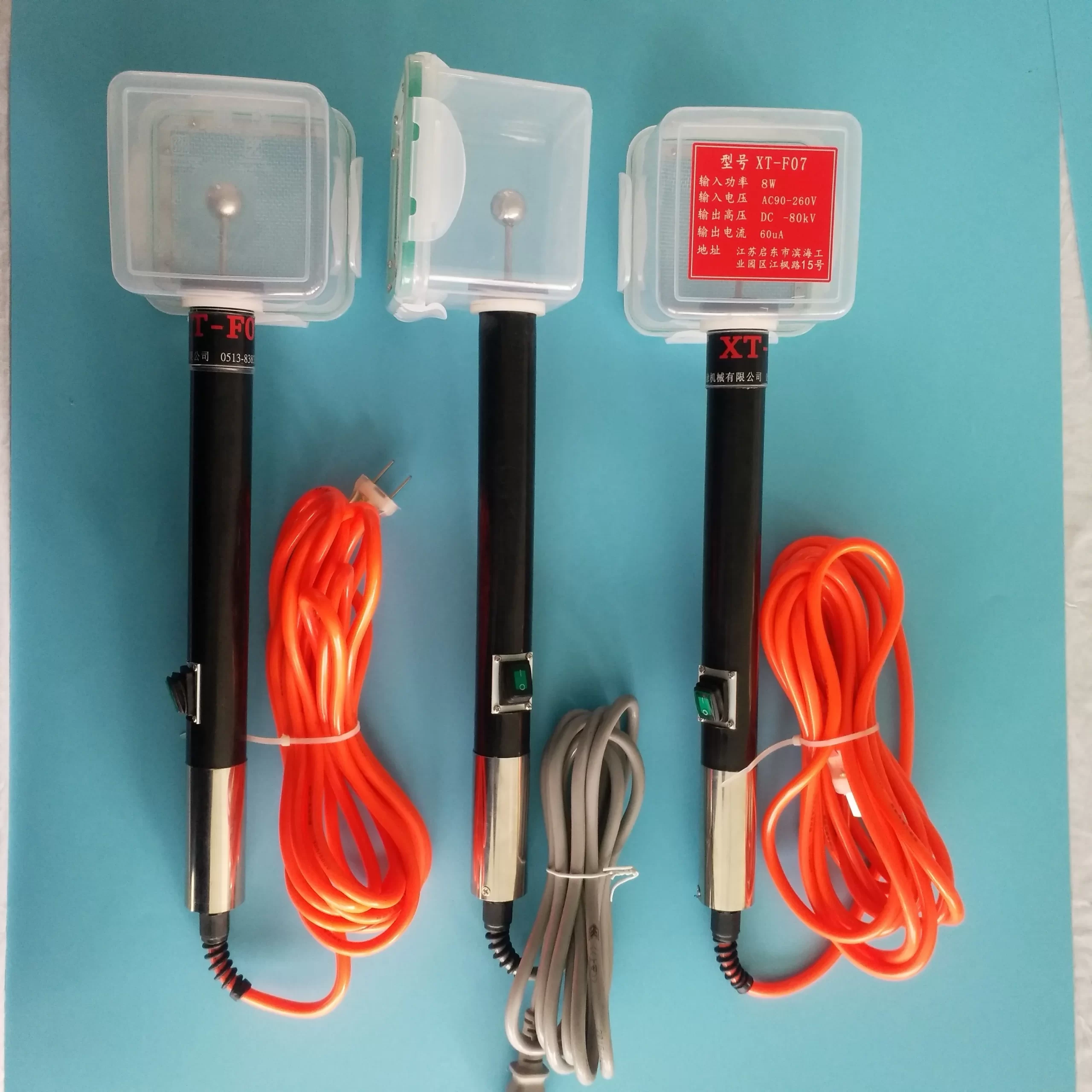

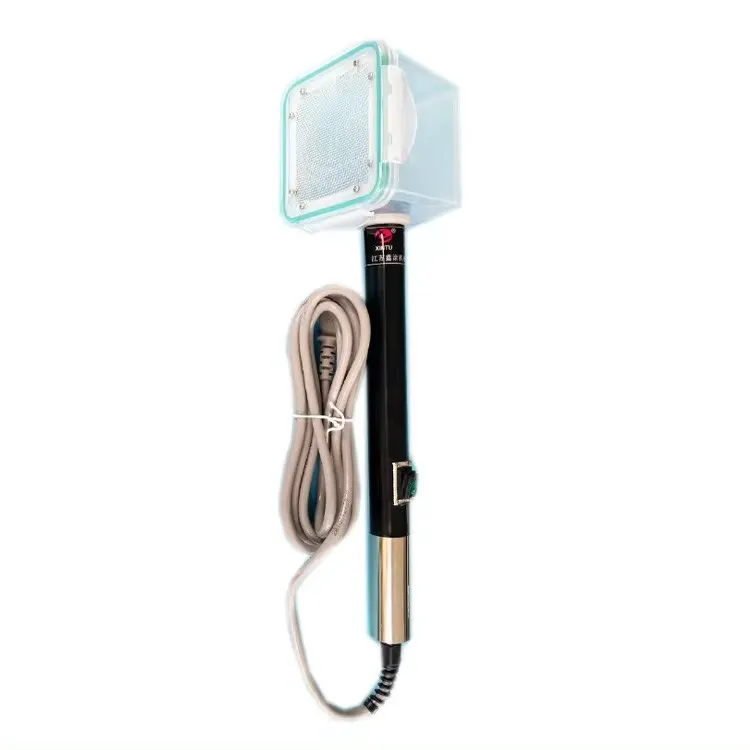

XT-F07 Lightweight Handheld Flocking Machine

Description

This lightweight, portable flocking machine is ideal for sampling in electrostatic flocking manufacturing, low-volume production, or home use.

Key Specifications:

• Weight: 2.5 kg (5.5 lbs)
• Dimensions: 45 cm (17.7 in) x 12 cm (4.7 in) x 10 cm (3.9 in)
• Voltage: 220V/110V
• Power: 30W
• Output Voltage: 60kV (fixed)
• Output Current: 70µA
• Flocking Area: Unlimited
• Flock Length: ≤ 3mm
• Flock Box Capacity: 800ml
• N.W/GW: 1.5 kg (3.3 lbs) / 2.5 kg (5.5 lbs)
• Certification: CE

Features:

• Portable and Lightweight: Weighs only 2.5 kg, making it easy to carry and use without a control unit.
• Simple Operation: Plug directly into AC 110-220V and start flocking.
• Detachable Flock Box: Quick color changes, easy cleaning, and maintenance.
• Microcontroller Control: Eliminates the need for a bulky main unit.

Usage Instructions:

1. Open the flock box lid and add flock until 1/3 full.
2. Plug the flocking wire into the power socket.
3. Apply glue to the workpiece.
4. Hold the flocking handle 200mm (7.9 in) above the workpiece.
5. Turn on the handle switch, allowing the flock to adhere to the workpiece instantly.
6. After flocking, turn off the switch and remove excess flock gently.

Applications:

• Material Compatibility: Suitable for paperboard, wood, metal, glass, foam, plastic products, plastic sheets, textiles, and more.
• Use Cases: Ideal for color sampling in flocking factories, low-production requirements, or home projects.

Product Overview:

The XT-F07 Handheld Flocking Machine offers a professional finish for a variety of materials. Its compact design and user-friendly features make it perfect for both professional and DIY applications. The detachable flock box facilitates quick color changes and easy maintenance, ensuring efficient and precise flocking every time.
